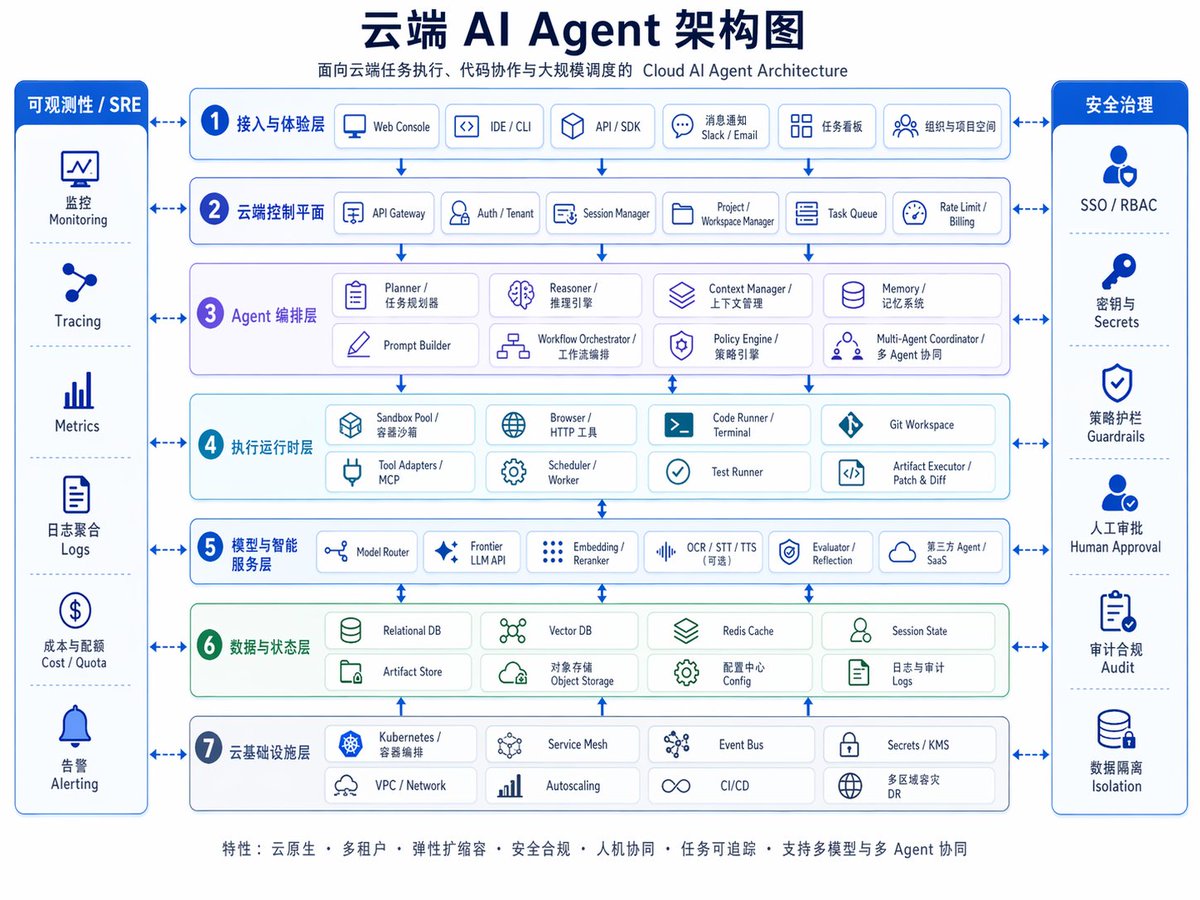

云端 AI Agent 架构图

案列来源：breeze

信息图 & PPTopenai/gpt-image-2#信息图#UI 设计#数据#信息#图表

一张精美的双语企业级信息图，展示了分层的云端 AI Agent 架构。

6.3w人正在用

4:5推荐尺寸

4.9w收藏人数

提示词模板

{
  "type": "企业级云端 AI 架构信息图",
  "style": "简洁的企业矢量图，白色背景，蓝色与青色调色板，圆角矩形，细蓝色轮廓，柔和阴影，以中文为主的双语标签并配有较小的英文副标题，对称布局，演示文稿级质量",
  "canvas": {
    "aspect_ratio": "4:3",
    "resolution": "1024x768"
  },
  "title_block": {
    "headline": "云端 AI Agent 架构图",
    "subtitle": "面向云端任务执行、代码协作与大规模调度的 Cloud AI Agent Architecture",
    "position": "top center"
  },
  "layout": {
    "center": {
      "type": "堆叠式架构层",
      "count": 7,
      "numbered": true,
      "layers": [
        {
          "index": 1,
          "title": "接入与体验层",
          "english": "access and experience layer",
          "count": 5,
          "items": [
            "Web Console",
            "IDE / CLI",
            "API / SDK",
            "消息通知 Slack / Email",
            "任务看板 组织与项目空间"
          ]
        },
        {
          "index": 2,
          "title": "云端控制平面",
          "english": "cloud control plane",
          "count": 6,
          "items": [
            "API Gateway",
            "Auth / Tenant",
            "Session Manager",
            "Project / Workspace Manager",
            "Task Queue",
            "Rate Limit / Billing"
          ]
        },
        {
          "index": 3,
          "title": "Agent 编排层",
          "english": "agent orchestration layer",
          "count": 8,
          "items": [
            "Planner / 任务规划器",
            "Reasoner / 推理引擎",
            "Context Manager / 上下文管理",
            "Memory / 记忆系统",
            "Prompt Builder",
            "Workflow Orchestrator / 工作流编排",
            "Policy Engine / 策略引擎",
            "Multi-Agent Coordinator / 多 Agent 协同"
          ]
        },
        {
          "index": 4,
          "title": "执行运行时层",
          "english": "execution runtime layer",
          "count": 8,
          "items": [
            "Sandbox Pool / 容器沙箱",
            "Browser / HTTP 工具",
            "Code Runner / Terminal",
            "Git Workspace",
            "Tool Adapters / MCP",
            "Scheduler / Worker",
            "Test Runner",
            "Artifact Executor / Patch & Diff"
          ]
        },
        {
          "index": 5,
          "title": "模型与智能服务层",
          "english": "model and intelligence services layer",
          "count": 6,
          "items": [
            "Model Router",
            "Frontier LLM API",
            "Embedding / Reranker",
            "OCR / STT / TTS（可选）",
            "Evaluator / Reflection",
            "第三方 Agent / SaaS"
          ]
        },
        {
          "index": 6,
          "title": "数据与状态层",
          "english": "data and state layer",
          "count": 8,
          "items": [
            "Relational DB",
            "Vector DB",
            "Redis Cache",
            "Session State",
            "Artifact Store",
            "对象存储 Object Storage",
            "配置中心 Config",
            "日志与审计 Logs"
          ]
        },
        {
          "index": 7,
          "title": "云基础设施层",
          "english": "cloud infrastructure layer",
          "count": 8,
          "items": [
            "Kubernetes / 容器编排",
            "Service Mesh",
            "Event Bus",
            "Secrets / KMS",
            "VPC / Network",
            "Autoscaling",
            "CI/CD",
            "多区域容灾 DR"
          ]
        }
      ]
    },
    "left_sidebar": {
      "title": "可观测性 / SRE",
      "position": "left",
      "count": 6,
      "items": [
        "监控 Monitoring",
        "Tracing",
        "Metrics",
        "日志聚合 Logs",
        "成本与配额 Cost / Quota",
        "告警 Alerting"
      ]
    },
    "right_sidebar": {
      "title": "安全治理",
      "position": "right",
      "count": 6,
      "items": [
        "SSO / RBAC",
        "密钥与 Secrets",
        "策略护栏 Guardrails",
        "人工审批 Human Approval",
        "审计合规 Audit",
        "数据隔离 Isolation"
      ]
    },
    "connectors": "连接两侧边栏至每个中心层的双向蓝色箭头，以及各架构层之间的垂直箭头"
  },
  "visual_details": {
    "icons": "每个方框内配有简洁的蓝色线条图标，每个模块一个图标",
    "boxes": "带有浅蓝或浅青色背景的圆角白色卡片",
    "section_colors": {
      "layers_1_2_5_7": "浅蓝色",
      "layer_3": "浅紫色",
      "layer_4": "浅青色",
      "layer_6": "浅绿色",
      "sidebars": "深宝蓝色标题栏，白色文字"
    },
    "typography": "加粗深海军蓝中文标题，较小的灰蓝色副标题，中等字重中文分区标签，紧凑的双语项目标签"
  },
  "footer": {
    "position": "bottom center",
    "text": "特性：云原生 • 多租户 • 弹性扩缩容 • 安全合规 • 人机协同 • 任务可追踪 • 支持多模型与多 Agent 协同"
  },
  "quality": "清晰的信息图，布局平衡，高可读性，适用于 Keynote、文档及产品营销的专业企业架构图"
}
