桌面端 AI Agent 架构图

案列来源：breeze

信息图 & PPTopenai/gpt-image-2#信息图#极简#UI 设计#示意图#教育

一份精美的中英双语企业级架构信息图，适用于桌面端 AI Agent 系统的分层设计。

10.7w人正在用

4:5推荐尺寸

2.1w收藏人数

提示词模板

{

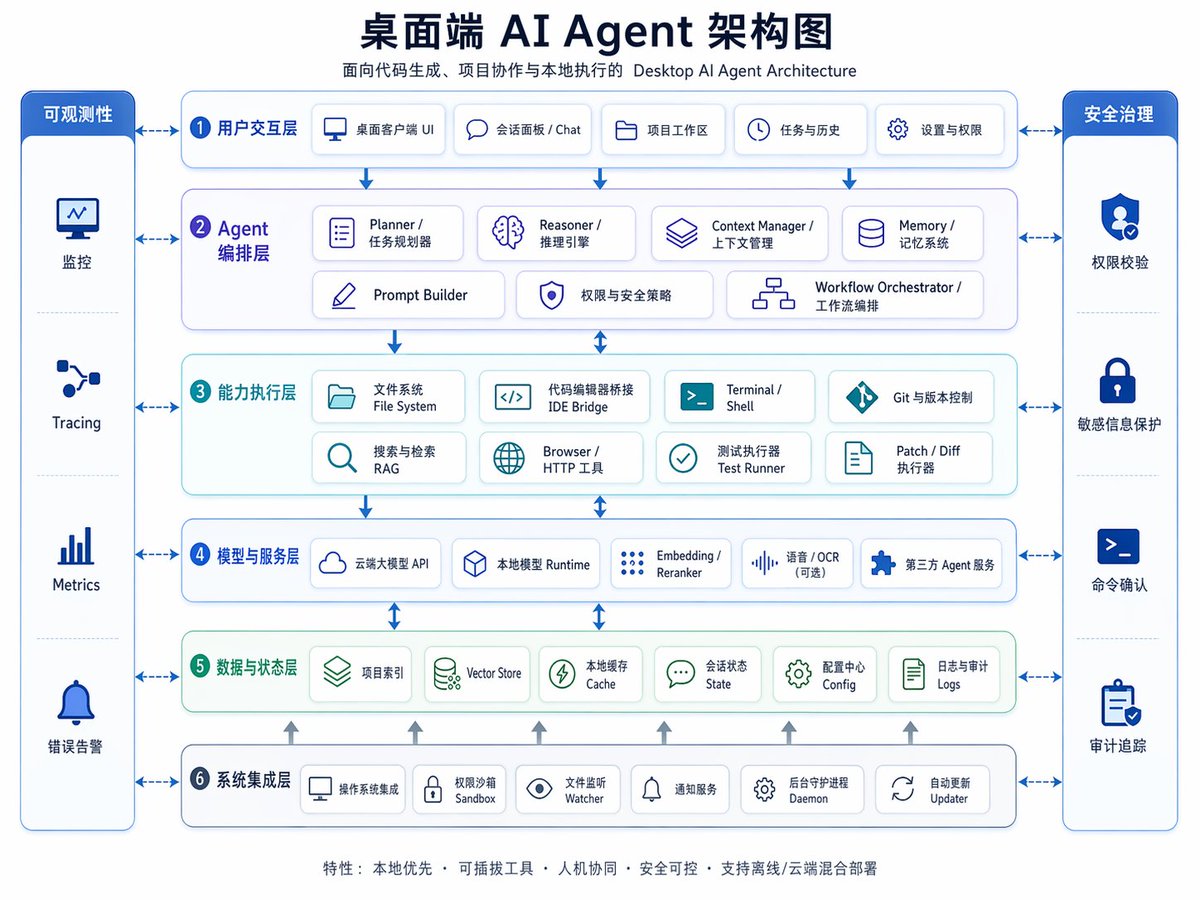

  "type": "双语企业架构信息图",
  "topic": "桌面端 AI Agent 架构图",
  "subtitle": "面向代码生成、项目协作与本地执行的 Desktop AI Agent Architecture",
  "style": {
    "look": "简洁现代 SaaS 架构图，企业演示文稿风格，矢量信息图",
    "background": "浅灰白色",
    "palette": {
      "primary": "深海军蓝",
      "secondary": "中蓝色",
      "accent": "青绿色",
      "support": "柔和灰色",
      "security": "亮宝蓝色"
    },
    "typography": "粗体中文标题搭配较小的双语标签，清晰无衬线字体，高易读性",
    "icons": "圆角白色卡片内嵌极简线条图标，带有细微阴影和蓝色轮廓",
    "geometry": "对称网格，圆角矩形，细连接箭头，模块间距均匀"
  },
  "layout": {
    "orientation": "横向 4:3 演示幻灯片",
    "header": {
      "title_centered": true,
      "title_size": "large",
      "subtitle_below": true
    },
    "sections": [
      {
        "title": "可观测性",
        "position": "最左侧垂直侧边栏",
        "count": 4,
        "labels": [
          "监控",
          "Tracing",
          "Metrics",
          "错误告警"
        ],
        "container": "高圆角蓝色面板，包含四个堆叠单元格和图标"
      },
      {
        "title": "安全治理",
        "position": "最右侧垂直侧边栏",
        "count": 4,
        "labels": [
          "权限校验",
          "敏感信息保护",
          "命令确认",
          "审计追踪"
        ],
        "container": "高圆角蓝色面板，包含四个堆叠单元格和图标"
      },
      {
        "title": "1 用户交互层",
        "position": "顶部水平层",
        "count": 5,
        "labels": [
          "桌面客户端 UI",
          "会话面板 / Chat",
          "项目工作区",
          "任务与历史",
          "设置与权限"
        ],
        "container": "宽圆角白色面板，带蓝色边框"
      },
      {
        "title": "2 Agent 编排层",
        "position": "第二水平层",
        "count": 7,
        "labels": [
          "Planner / 任务规划器",
          "Reasoner / 推理引擎",
          "Context Manager / 上下文管理",
          "Memory / 记忆系统",
          "Prompt Builder",
          "权限与安全策略",
          "Workflow Orchestrator / 工作流编排"
        ],
        "container": "宽圆角白色面板，带淡紫蓝色调"
      },
      {
        "title": "3 能力执行层",
        "position": "第三水平层",
        "count": 8,
        "labels": [
          "文件系统 File System",
          "代码编辑器桥接 IDE Bridge",
          "Terminal / Shell",
          "Git 与版本控制",
          "搜索与检索 RAG",
          "Browser / HTTP 工具",
          "测试执行器 Test Runner",
          "Patch / Diff 执行器"
        ],
        "container": "宽圆角白色面板，带淡青色调"
      },
      {
        "title": "4 模型与服务层",
        "position": "第四水平层",
        "count": 5,
        "labels": [
          "云端大模型 API",
          "本地模型 Runtime",
          "Embedding / Reranker",
          "语音 / OCR（可选）",
          "第三方 Agent 服务"
        ],
        "container": "宽圆角白色面板，带蓝色边框"
      },
      {
        "title": "5 数据与状态层",
        "position": "第五水平层",
        "count": 6,
        "labels": [
          "项目索引",
          "Vector Store",
          "本地缓存 Cache",
          "会话状态 State",
          "配置中心 Config",
          "日志与审计 Logs"
        ],
        "container": "宽圆角白色面板，带淡绿色调"
      },
      {
        "title": "6 系统集成层",
        "position": "底部水平层",
        "count": 6,
        "labels": [
          "操作系统集成",
          "权限沙箱 Sandbox",
          "文件监听 Watcher",
          "通知服务",
          "后台守护进程 Daemon",
          "自动更新 Updater"
        ],
        "container": "宽圆角白色面板，带蓝色边框"
      }
    ],
    "centerpiece": "中间六层堆叠架构，两侧为治理侧边栏",
    "connectors": "虚线双向箭头连接各核心层与两侧边栏；垂直蓝色箭头在核心层间向下流动；小型灰色向上箭头从底部集成层升至数据层",
    "footer": {
      "count": 1,
      "text": "特性： 本地优先 · 可插拔工具 · 人机协同 · 安全可控 · 支持离线/云端混合部署",
      "position": "底部居中"
    }
  },
  "rendering": {
    "flat_vector": true,
    "high_resolution": true,
    "sharp_lines": true,
    "balanced_whitespace": true,
    "professional_pitch_deck_quality": true
  }
}
